RANGE OF PRODUCTS
PalmScan A2000 Tablet
(Surgical Pachymeter Device)
PalmScan
(Mobile USB B-Scan)
PalmScan K2000 Keratometer
(USB Auto Keratometer Direct View)
PalmScan VF 2000
(Visual Field Analyzer)
PALMSCAN OMNI
(Corneal Cross Linking System)

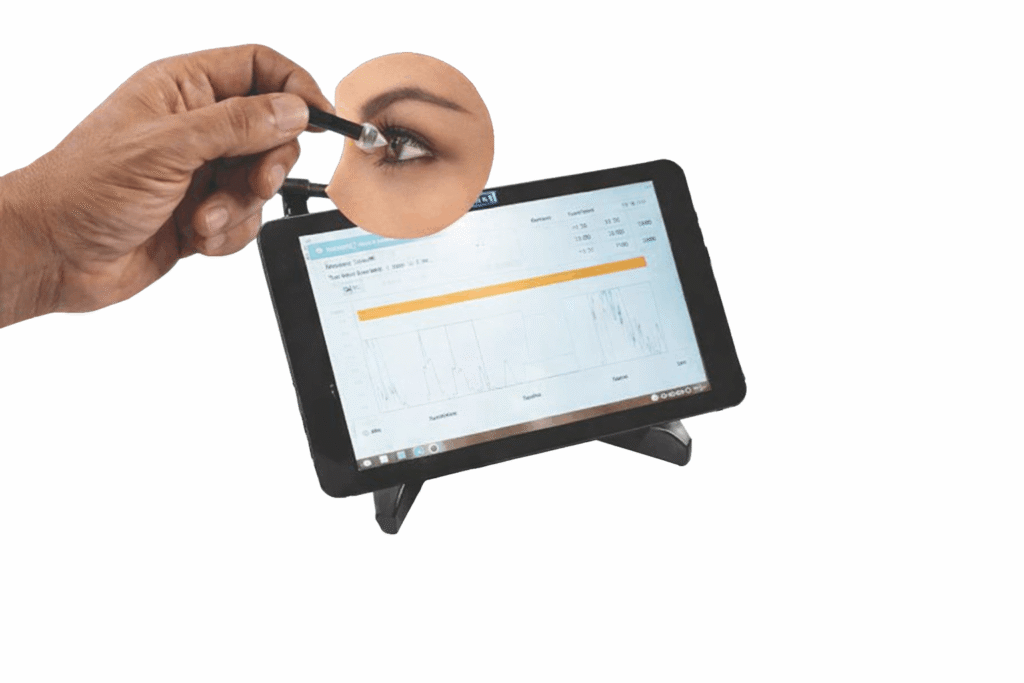

PalmScan A2000 Tablet
A-Scan + IOL Calculator
- Battery Operated
- Portable
- Extremely Accurate
Features
Immersion and Contact
- Advanced technology quickly captures AL, ACD and LT with I-touch operation in a few seconds
- IOL Calculator using 4 modern formulas
- Post-Refractive Correction of Ks
- Dense Cataract Penetration – capable of penetrating the densest cataract lenses
Benefits
- High Accuracy – parallels Laser Interferometry results
- Acquires 8,192 data points per scan
- E-Z Tip immersion – patented technology allowing immersion in sitting position.

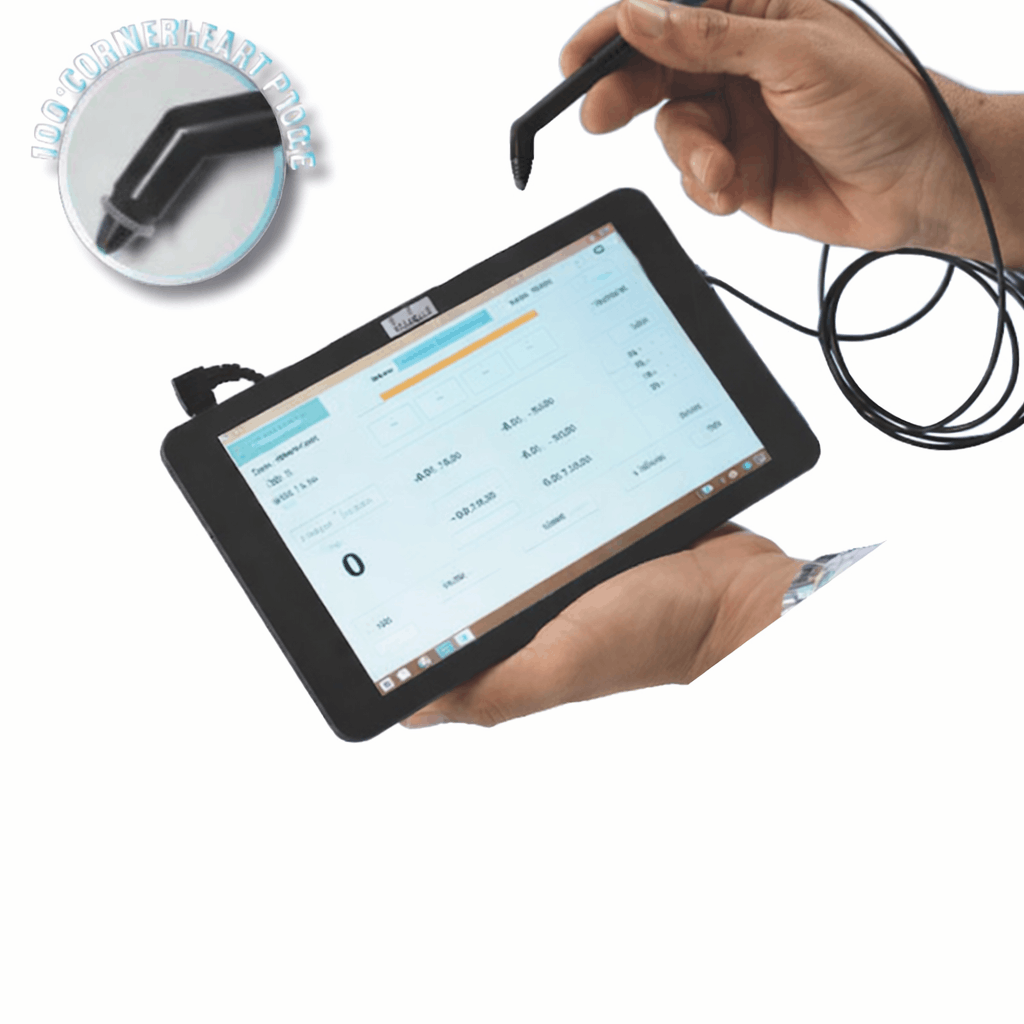

PalmScan A2000 Tablet
Surgical Pachymeter Device
- Battery Operated
- Portable
- Extremely Accurate
Essentials
- Highest frequency probe at 50 MHz
Features
Highest Accuracy
- PalmScan’s 264 MHz sampling frequency minimizes errors,
providing the most accurate results - Automatic IOP Adjustment
- 17-location corneal mapping
Benefits
- Dry-Bed
Measures corneal bed post-LASIK cut

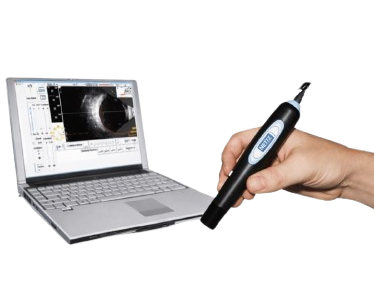

PalmScan
Mobile USB B-Scan
- Handheld & Mobile
- USB Powered
- Extremely Convenient
Features
High Resolution B-Scan Imaging
- High resolution imaging with 2048 samples per line
- Dual calipers for easy measurement of intraocular structures
- Pulse frequency of 12/15 MHz with 3–10 cm penetration depth
- A-mode display with vector selection tools
Benefits
- Converts any PC with a USB port into a high-resolution B-Scan system
- Portable and versatile ultrasound imaging solution
- Ideal for fast, accurate ocular diagnostics

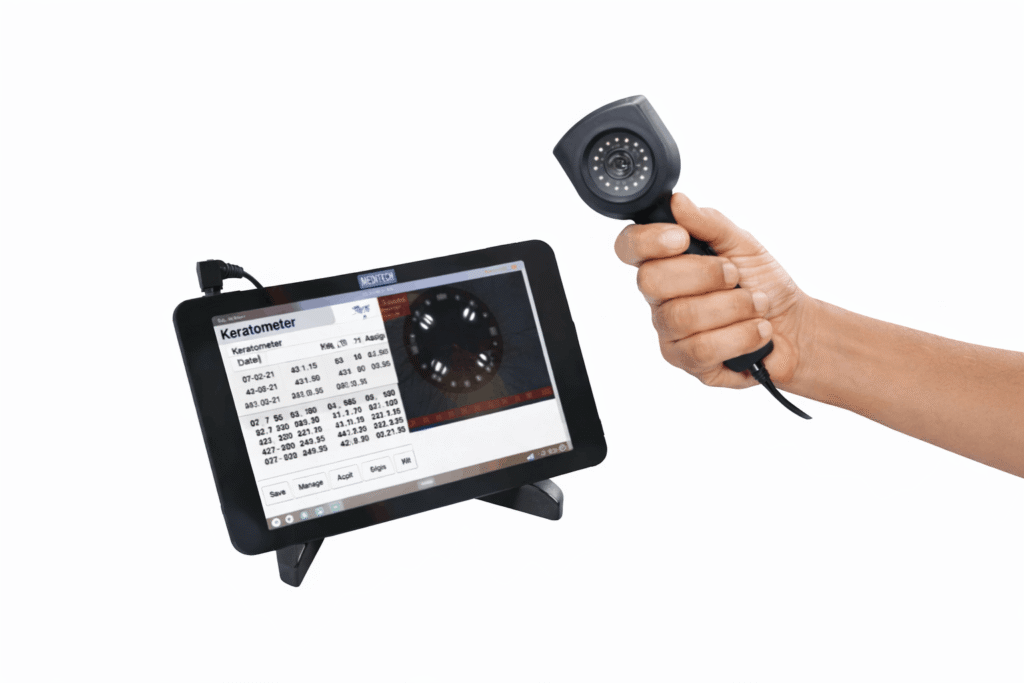

PalmScan K2000 Keratometer
USB Auto Keratometer Direct View
Features
- Direct view of the cornea
- Fast measurements
- 16-point keratometry
- Built-in fixation light
- Extremely light handpiece – weighs only 16 ounces
- Operating room ready
- Pediatrics friendly
- Astigmatic measurements providing steep and flat axis data
- Adjustable keratometric index

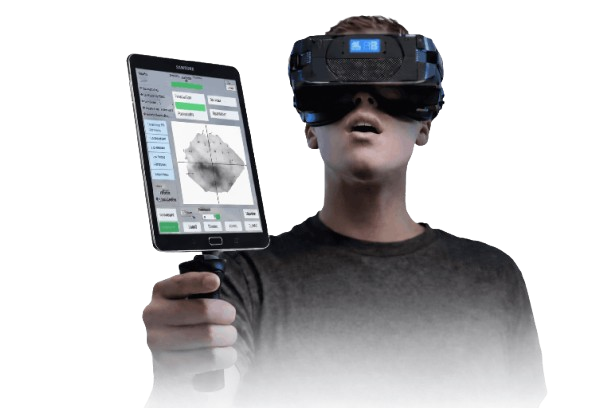

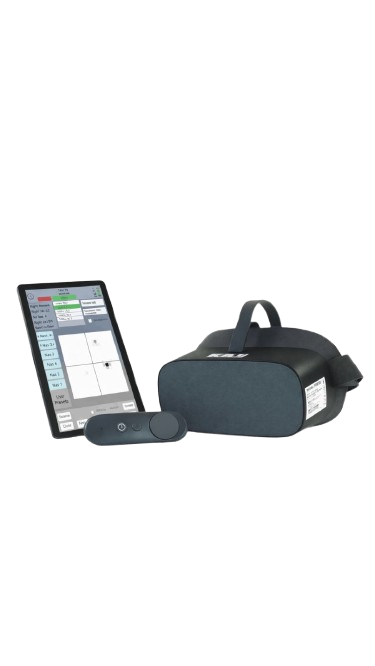

PalmScan VF 2000
Visual Field Analyzer
Features
- Over 25 perimetry tests
- Fast measurements
- 70-degree field of view testing (±35 degrees)
- 6 diopters of built-in optical adjustment
- Screening, ptosis, and neurological tests
- Patient database with archiving capability
- Fixation light with gaze monitoring
- Ability to test one eye at a time
- PDF print and EMR compatibility
- Wi-Fi and Bluetooth enabled
- Lightweight design – 270 grams
- Highly sensitive, reliable, and reproducible results
- Usable in almost any clinical setting
- Pediatrics friendly
- Suitable for disabled patients
- Ideal for patient screening in nursing homes
- Enhanced patient comfort – usable in any position or orientation
- No dark room required
PALMSCAN OMNI
Corneal Cross Linking System
Features
- Variable settings from 3 mW to 45 mW with simultaneous radiation time adjustment
- Continuous, pulsed, and LASIK radiation modes
- Portable design
- Self-calibrating and self-adjusting operation
- Eye tracking for enhanced precision
- Integrated pachymeter option with masking capability
- Inbuilt power meter
